Case Study: Digitizing the City of Cheney Fire Department Logo

When the City of Cheney Fire Department asked whether their detailed logo could be embroidered, they had already heard “no” from several shops. They ultimately had us sew on their existing patches, but we digitized the logo on our own time to see what was possible. After three sew-outs, the result was nearly identical to the original.

A fire rescue emblem or shield design with crossed red and white axes, a red firefighter helmet, a gray gas mask, laurel branches, and the text 'FIRE RESCUE', 'EMS', 'EST. CHENey 1893' on a white background.

The Challenge

The department wanted its logo on the left chest of a few performance 1/4-Zip pullovers. The emblem has a train, an eagle, fine lettering, and an established date. Digitized the traditional way at chest size, it would run past 26,000 stitches, and at that density:

  • Thread builds up and the emblem looks heavy and distorted.
  • The garment turns stiff, like cardboard, and loses its drape.
  • Lightweight performance fabric puckers and lays poorly.

That is why other shops had failed with this logo, and why we don’t take on designs at that stitch count.

Two Options on the Table

Tom, the department’s contact, was undecided. He wasn’t sure whether to use one of the department’s existing patches or try embroidery again, and he came to us for guidance. We told him the easiest option was a sewn-on patch, though not necessarily the best one, and that we love a good challenge. We laid out both paths:

  • Patch: We’d attach the department’s existing patches to the garments at no charge (in place of embroidering). The only added cost would be return shipping.
  • Custom digitization: We’d attempt to digitize the logo with a clear condition: if we weren’t happy with the result, there would be no charge.

After several disappointing sew-outs from other shops, Tom understandably played it safe and went with the patch. We decided to show him what was possible anyway.

The Digitizing

We digitized the logo anyway, as a free demonstration of what our digitizing team can do.

  • Lower stitch count, flexible feel. The goal was a softer, flexible emblem without the cardboard feel.
  • Black garment. The black fabric helps keep the stitch count down as we can utilize it for the background.
  • Selective simplification. Not every element could survive at this size. We prioritized the details that carry the logo’s identity. The train and eagle were simplified and the EST date was removed entirely.
  • Three sew-outs. After each test we examined the stitching, corrected small details, and re-stitched. The third sew-out matched the original so closely it was nearly indistinguishable.

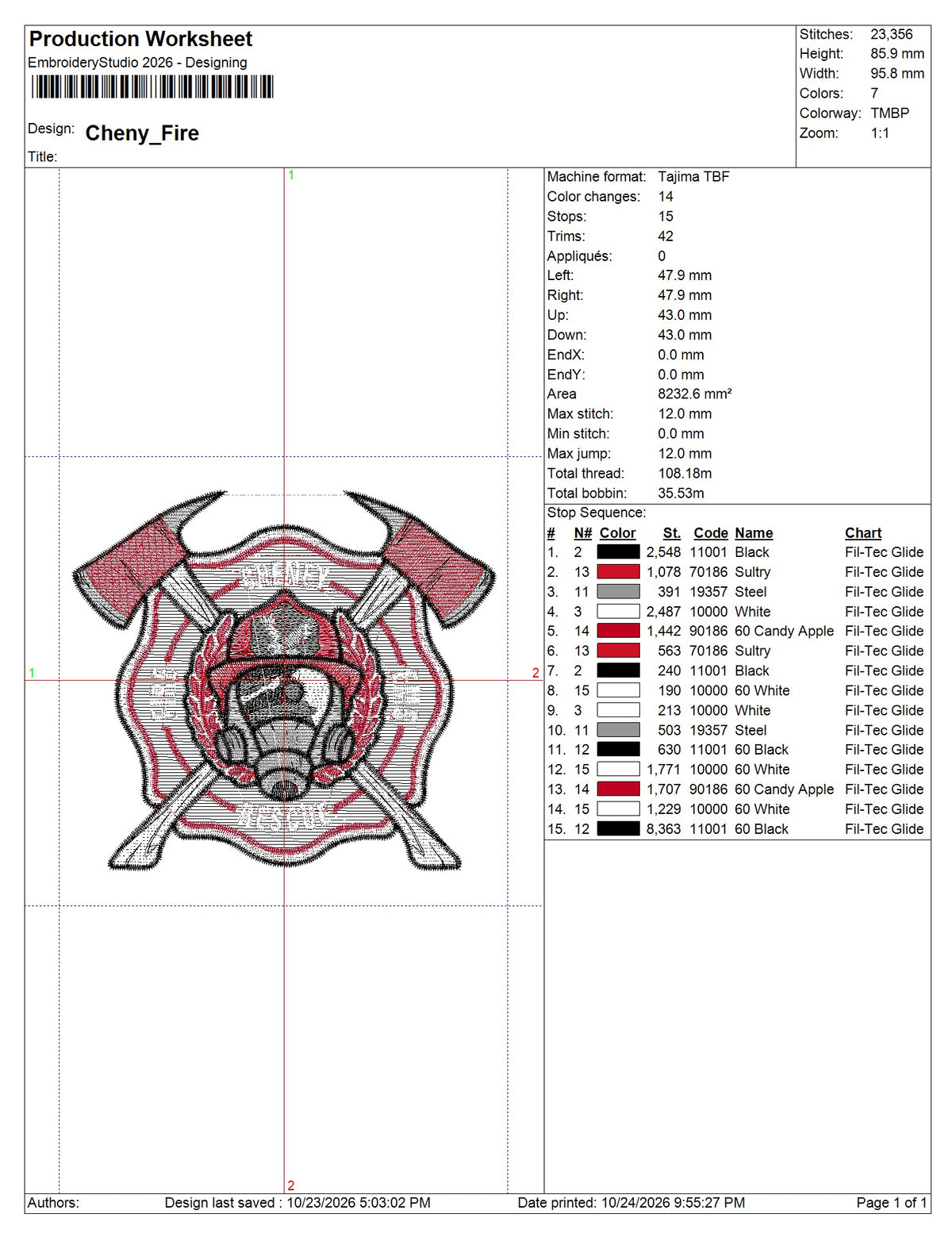

The final result is 23,000 stitches, with 4 colors (white, silver, black, red).

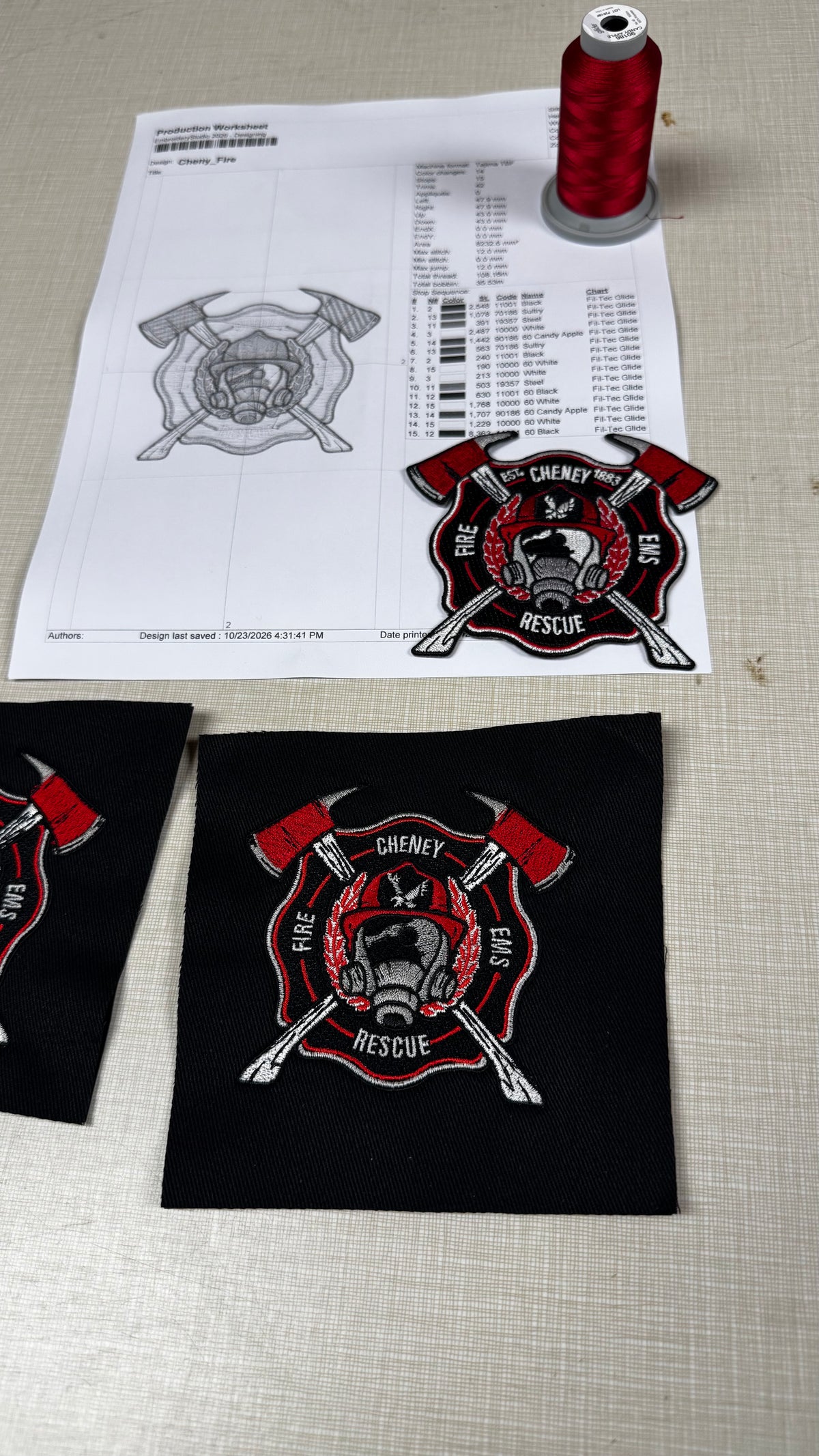

Sew-outs

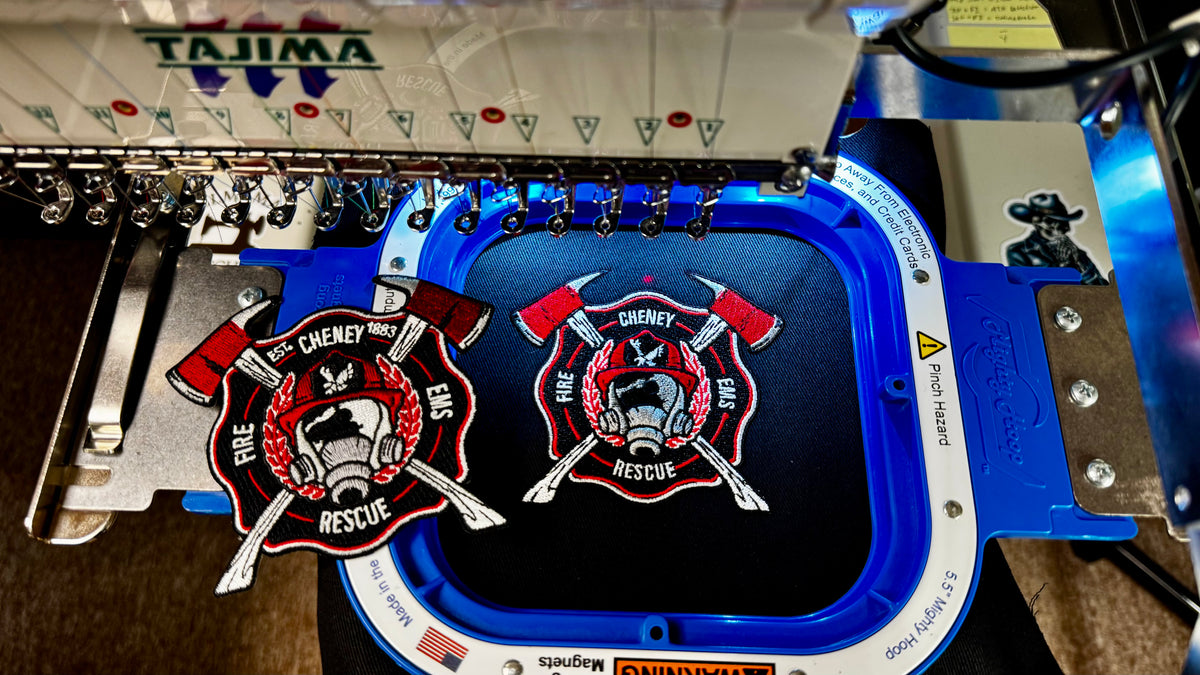

  • Test #1

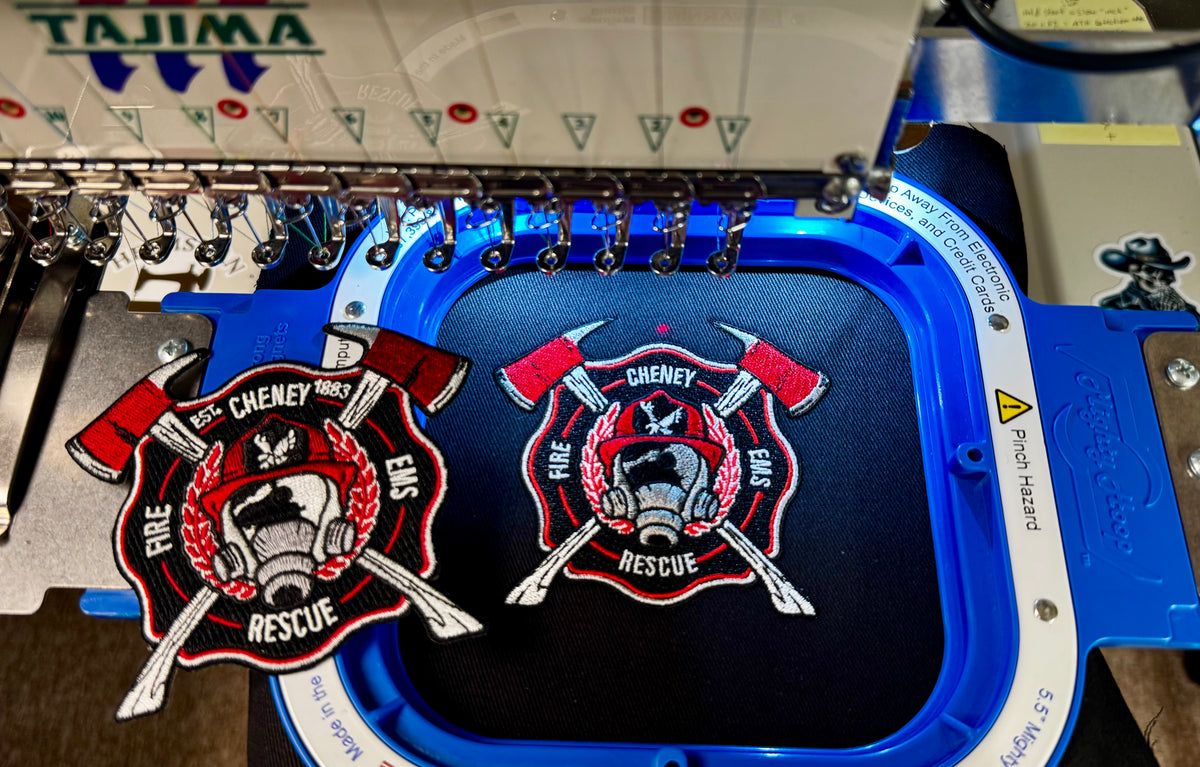

  • Test #2

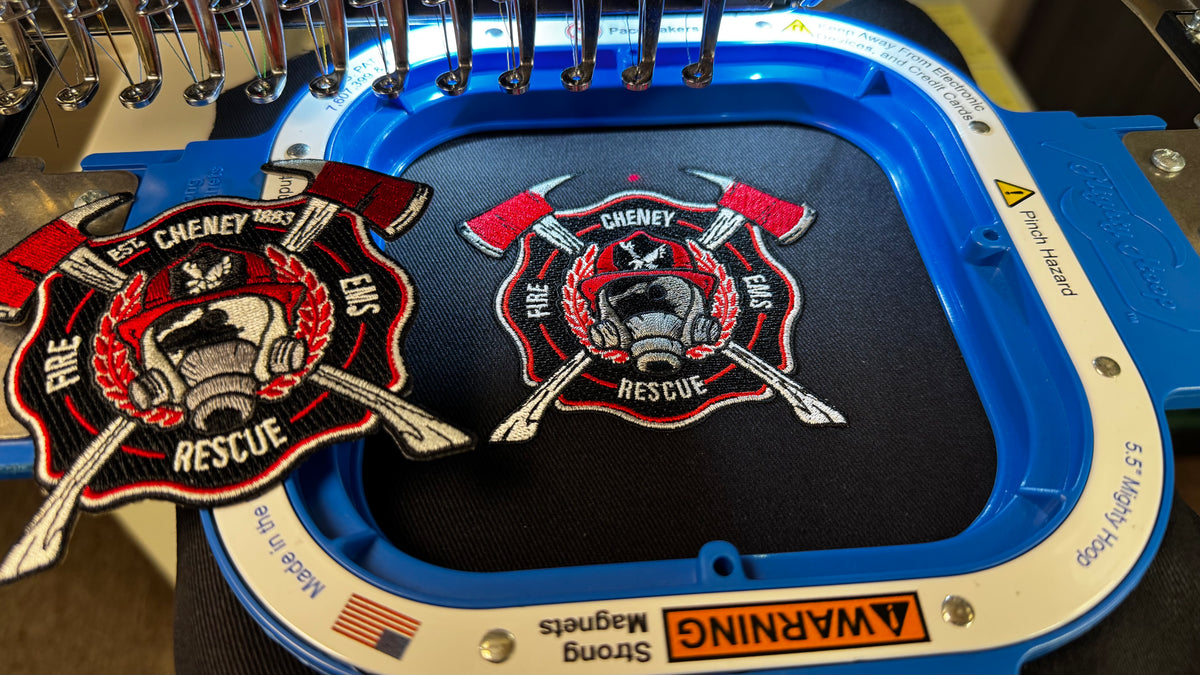

  • Test #3

A fire rescue emblem or shield design with crossed red and white axes, a red firefighter helmet, a gray gas mask, laurel branches, and the text 'FIRE RESCUE', 'EMS', 'EST. CHENey 1893' on a white background.

Why Embroidery Would Have Been the Better Choice

The patches the department supplied were well made, and we attached them cleanly. But our sample shows the logo could have been stitched directly onto the garments, and that would have suited these pullovers better:

  • Weight and drape. Patches add noticeable weight, which can pull on a lightweight performance fabric and change how the garment hangs.
  • A cleaner finish. Embroidery becomes part of the fabric, with no patch edge to catch, lift, or curl with wear and washing.
  • A coordinated look. With the logo and name and rank lettering all embroidered, the garment reads as one finished piece.

Digitizing is what makes this possible. A logo this detailed can’t simply be run through software. It takes hands-on work to rebuild the artwork, control the stitch count, and test and refine it until it lays flat and stays soft. That is the work we put into the Cheney sample, and it’s what you get when you order digitizing from us.

A fire rescue emblem or shield design with crossed red and white axes, a red firefighter helmet, a gray gas mask, laurel branches, and the text 'FIRE RESCUE', 'EMS', 'EST. CHENey 1893' on a white background.

What We Learned

  • A logo that several shops couldn’t embroider isn’t necessarily impossible. It may need more digitizing time than most shops are willing to spend.
  • Detail, stitch count, fabric, and color all affect the outcome, and the right digitizing balances them.
  • On lightweight garments, well-digitized embroidery beats a sewn-on patch.

Work With Us

The City of Cheney sample was a one-off. We digitized it on our own time to show what’s possible, and it’s real work from our team. If another shop told you your logo couldn’t be embroidered, send us the artwork. We’ll tell you honestly whether it can be done and what it would take, and if it’s a fit, we’ll digitize it, stitch it out, and refine it until it’s right before production.
